JBQ-900-A干式变压器空气减震器

文章来源:弹簧减震器生产厂家发布时间:2018-11-05 15:53浏览次数:

JBQ-900-A干式变压器空气减震器
Dry type transformer air shock absorber

上海松夏减震器有限公司官方网站为您介绍:JBQ-900-A干式变压器空气减震器信息,上海松夏为干式变压器推荐*款减震效果.好的减震器产品:空气减震器,它是目前全球.好的减震器产品,可以将变压器的震动吸收效果好。
Shanghai Songxia  absorber group limited official website for your introduction:JBQ-900-A dry type transformer air shock absorber, Songxia group for dry-type transformer to recommend a damping effect best shock absorber products: air damper, which is currently the world's best shock absorber products, The vibration and absorption effect of the transformer is good.

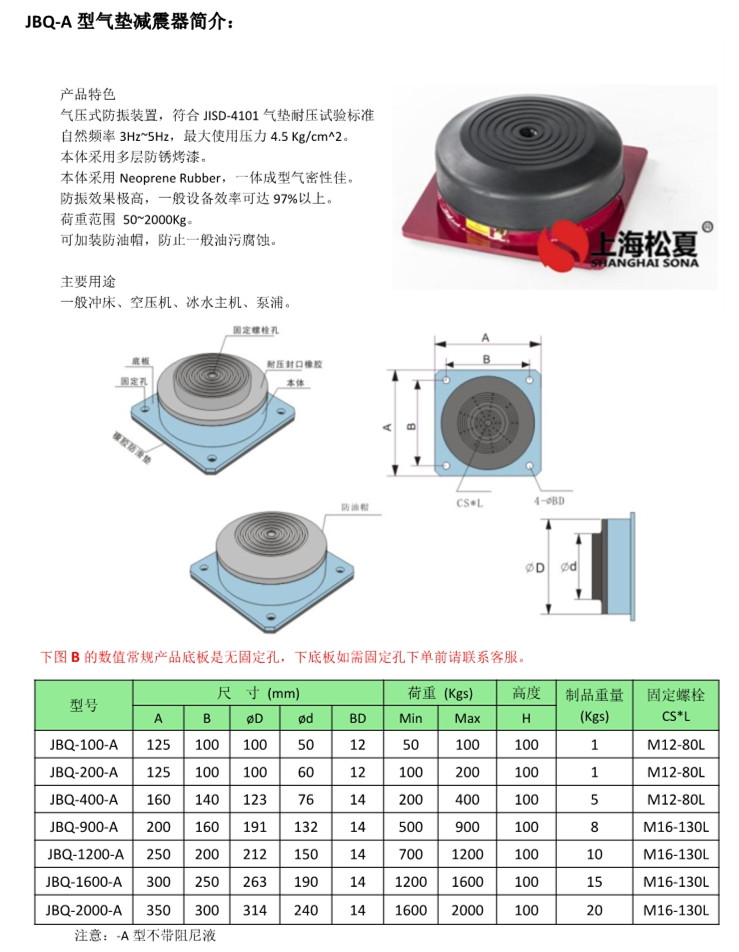

产品介绍:
气压式防振装置,符合JISD-4101气垫耐压试验标准
自然频率3Hz~5Hz,.大使用压力4.5 Kg/cm^2。
本体采用多层防锈烤漆。
本体采用Neoprene Rubber,*体成型气密性*。
防振效果.高,*般设备效率*
荷重范围 50~3500Kg。
可加装防油帽,防止*般油污腐蚀。
使用场合:冷水机组、冲床、泵组。
Product introduction:
Air pressure anti vibration device conforms to JISD-4101 air cushion pressure test standard
The natural frequency is 3Hz~5Hz, and the maximum use pressure is 4.5 Kg/cm^2.
Multi layer antirust paint is used in the body.
The body adopts Neoprene Rubber, which has good air tightness in one.
The anti vibration effect is very high, and the efficiency of the general equipment *
The range of load is 50~3500Kg.
Oil proof cap can be added to prevent oil corrosion.
Use: chiller, punch, pump group.
